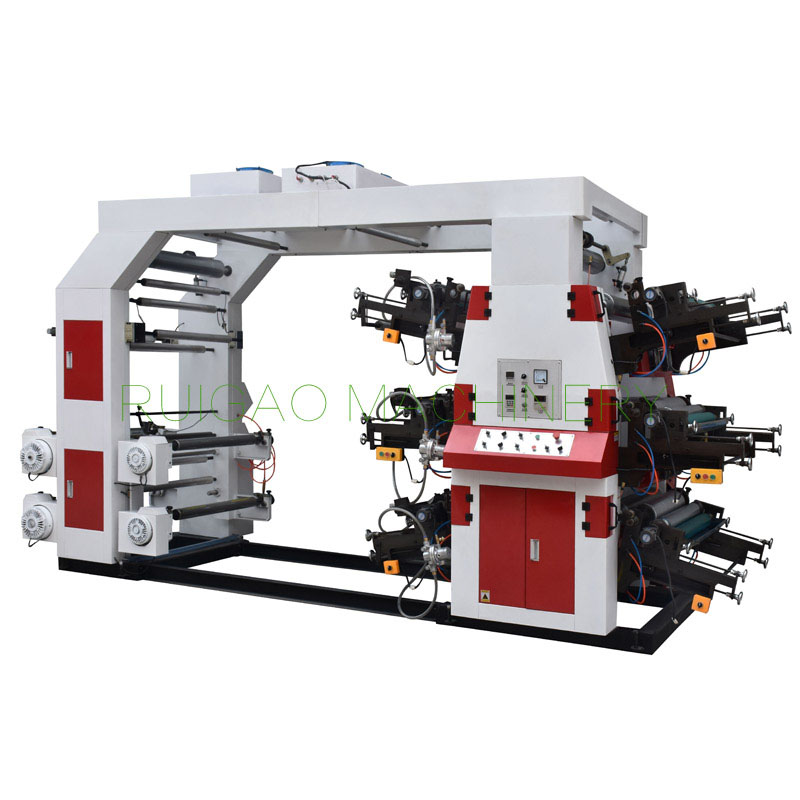

High speed 4 Color Printing Machine

Product Name: high speed 4 color printing machine

1. Machine Introduction

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass

paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food,

supermarket handbag, vest bag and clothes bag, etc.

2. Machine Advantages

1. We use stronger steel plate for machine body, which make machine more stable.

2. Helical gear for whole machines, which make the printing quality more accurate and precise.

3. EPC, which adjust the edge of film or paper.

4. Automatic tension controlling, easy to operate.

5. Longer heating oven, improve the printing speed.

6. Doctor blade, which make the ink more equal. Double doctor blade is optional.

7. Separate ink motor to control the ink roller.

8. Ink pump is optional.

3. Machine Parameters

Type	YTH-4600	YTH-4800	YTH-41000	YTH-41200
Max.Effective Printing Width	560mm	760mm	960mm	1160mm
Max.Web Width	600mm	800mm	1000mm	1200mm
Max.Printing Speed	70m/min	70m/min	70m/min	70m/min
Max.Mechanical Speed	80 m/min	80 m/min	80 m/min	80 m/min
Max. Diameter of Roll Material	?450mm	?450mm	?450mm	?450mm
Internal Diameter of Roll Core	?76mm	?76mm	?76mm	?76mm
Rang of Repeat Printing Length	191-914mm	191-914mm	191-914mm	191-914mm
Accuracy of Registration	?0.25mm	?0.25mm	?0.25mm	?0.25mm
Plate Thickness(Both side adhesive included)	2.38mm	2.38mm	2.38mm	2.38mm
Heating Power	8Kw	9Kw	10Kw	12Kw
Total Power	11.5Kw	15Kw	18.5Kw	22Kw
Weight of Machine	3000kg	3500kg	4000kg	4500kg
Overall Dimension	L4300?W1700?H2500mm	L4300?W1900?H2500mm	L4300?W2100?H2500mm	L4300?W2300?H2500mm
